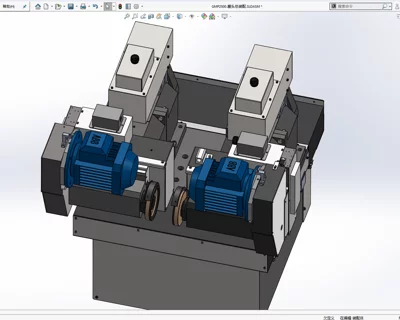

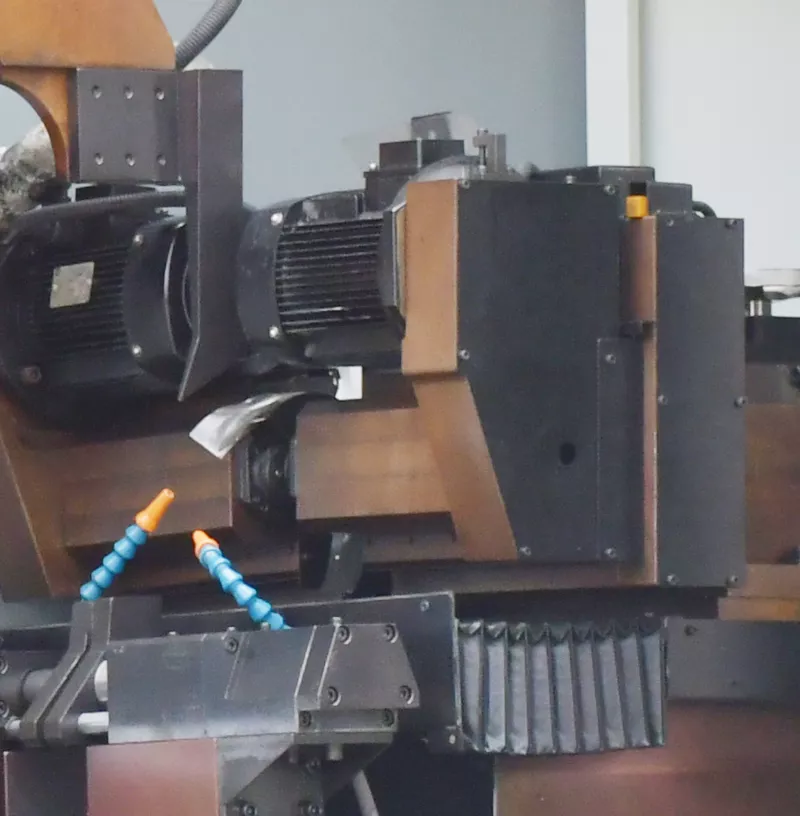

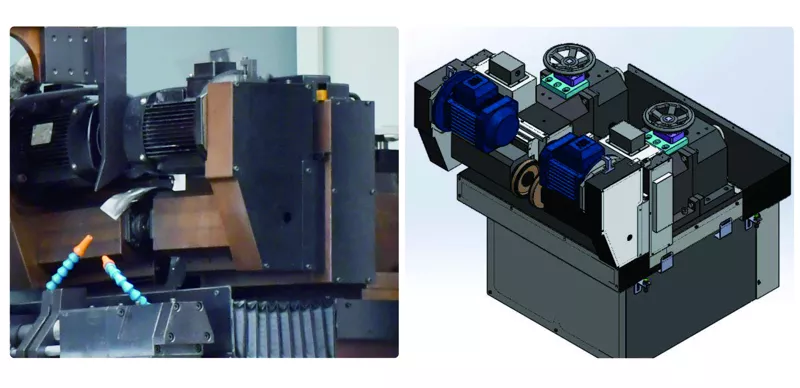

GMP2500 Double side grinding machine
Basic Attributes
- Blade Outside diameter 500-2500 mm
- Bore hole diameter 30-205 mm
- Max blade thickness 15 mm
- Tooth Pitch 16-150 mm
- Grinding wheel outside dia. 125 mm
- Grinding wheel linear speed 35 mm
- Coolant tank capacity 200 L
- Total power 5.9 kW
- Machine Size 3200*2100*2280 mm²
- Package size 3380*2200*2390 mm²
This machine is widely used for large-scale aluminum profile processing, large metal rail processing, and large wood cutting processing. It is equipped with a complete production line that can manufacture alloy circular saw blades with a maximum diameter of 2500mm.
This machine is suitable for grinding the tooth side of steel pipe circular saw blade. The main features are as follows:
1. Three grinding procedures to choose from
2. Two CNC gear axes, with fast gear function
3. Four CNC control axes, high-precision coordinated control, to ensure grinding accuracy and efficiency
4. The operation is simple, and the grinding programming can be completed by inputting data in the operation panel
5. The thickness of the matrix does not need to be adjusted
6. Grinding speed and stroke can be set arbitrarily
7. The equipment has water-cooled and oil-cooled grinding methods
