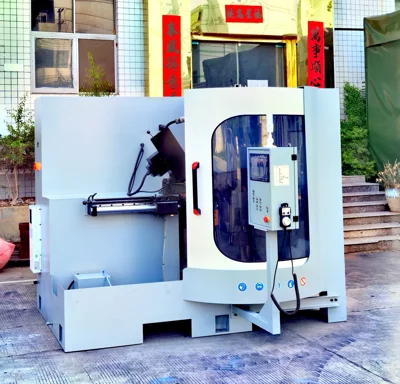

CX1600 Metal circular saw blade tooth grinding machine
Basic Attributes
- Blade Outside diameter 400-1600 mm
- Package size 2580*2290*2275 mm²
- Machine Size 2380*2150*2100 mm²
- Total power 5.5 kW
- Coolant tank capacity 180 L
- Grinding wheel linear speed 32 mm
- Grinding wheel outside dia. 180/125 mm
- Feeding Speed 15 mm/s
- Grinding speed 0.5-3 mm/s
- Bevel grinding top&face 8-45 °
- Max Grinding Stroke 5 mm
- Rake angle -27-40 °
- Tooth Pitch 12-100 mm
- Max blade thickness 15 mm
- Blade Inner Diameter 30-205 mm
- Machine Weight 2,500 kg
The translation of the text is as follows:
"Grinding machine for saw blades suitable for various types of saw blades: metal cold saw, aluminum alloy saw blade, woodworking saw blade, plastic and PVC industry, metal industry, etc.
Equipment features:
* The machine tool structure uses ductile iron castings to provide high rigidity and stability.
* High-precision imported main shaft
* CNC automation control
* Free editing of tooth profile, slotting, negative chamfering (max -30°), ladder flat teeth; left-right-left-right flat one-time forming
* Servo knife setting and feed system to ensure processing accuracy.
* Fine grinding can achieve a precision of less than or equal to 0.025mm (within 500mm saw blade)."
*Cold sawing chute grinding can be realized automatically

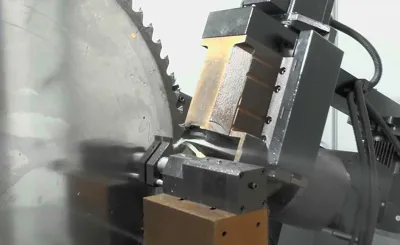

Metal circular saw blade
Importance of cast iron fuselage
For more information about alloy circular saw blade manufacturing equipment, please click
Invention patents and national high-tech enterprises
National small and medium-sized science and technology enterprises, national high-tech enterprises, with 2 invention patents, a number of utility model patents, design patents, software Copyrights, etc., fully ensure the reliability and professionalism of products!
