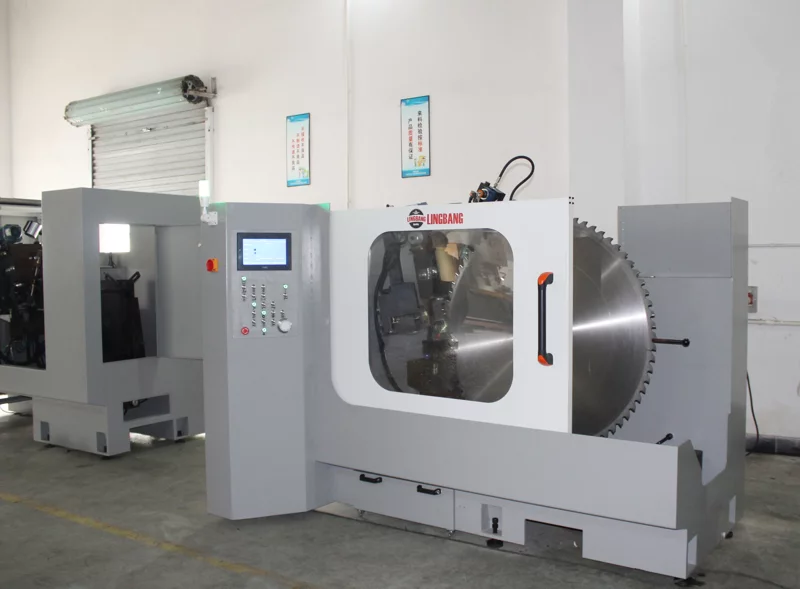

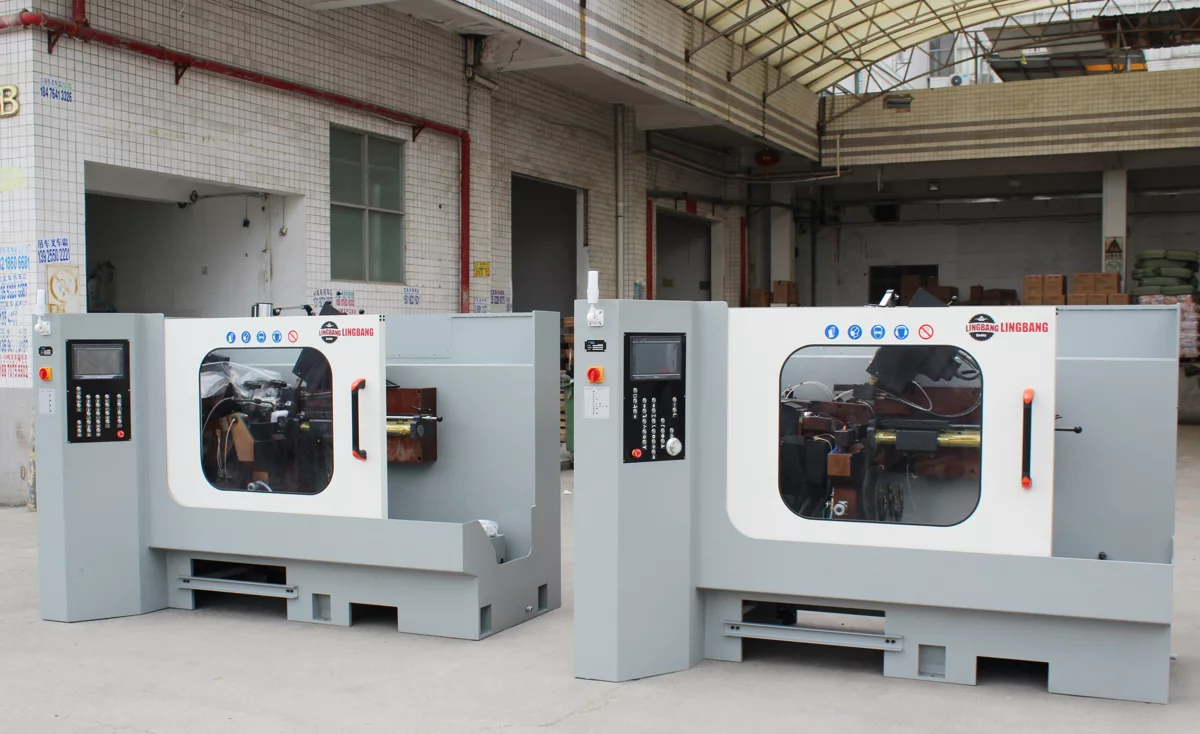

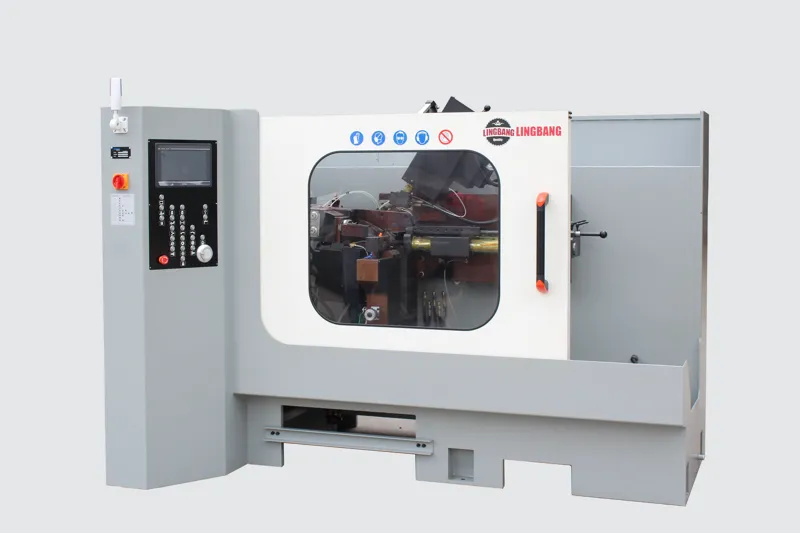

MC1600 Face and top grinding machine
Basic Attributes
- Blade Outside diameter 300-1600 mm
- Bore hole diameter 30-120 mm
- Max blade thickness 12 mm
- Tooth Pitch 7-100 mm
- Rake angle -5~40 °
- Clearance Angle 8-45 °
- Bevel grinding top&face 45 °
- Grinding speed 0.5~6 mm
- Feeding Speed 13 tooth/min
- Grinding wheel outside dia. 125 mm
- Grinding wheel linear speed 30 mm
- Coolant tank capacity 200 L
- Total power 3.5 kW
- Machine Size 2200*1600*1855 mm²
- Package size 2360*1750*2025 mm²
Description
The type of saw blade at the top of the tooth surface of the tooth:
Cutting iron saw blade
Aluminum alloy saw
Woodworking saw blade
Plastic PVC industry
Metal industry
Features:
*The machine tool structure part uses ball ink cast iron
*High -precision imported spindle
*CNC automation control
*Ladies flat teeth, one left and right, one foothold for molding
*Services to knife and feed systems to fully ensure the processing accuracy.
*Fine grinding best accuracy is less than equal to 0.02mm (within 500mm saw tablets)
*The whole machine warranty for 12 months

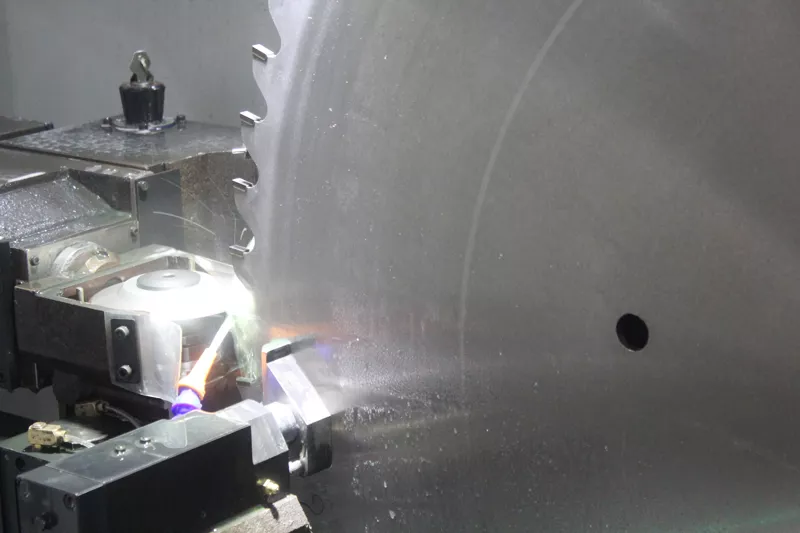

Top grinding

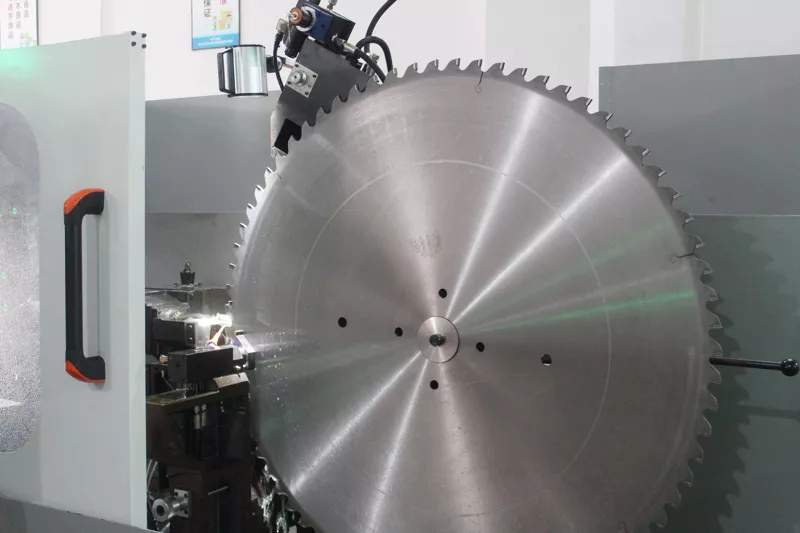

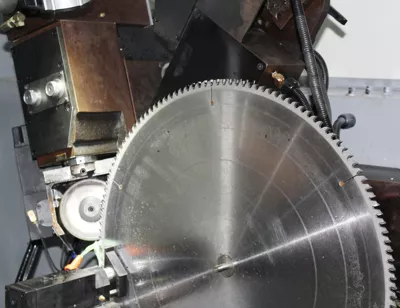

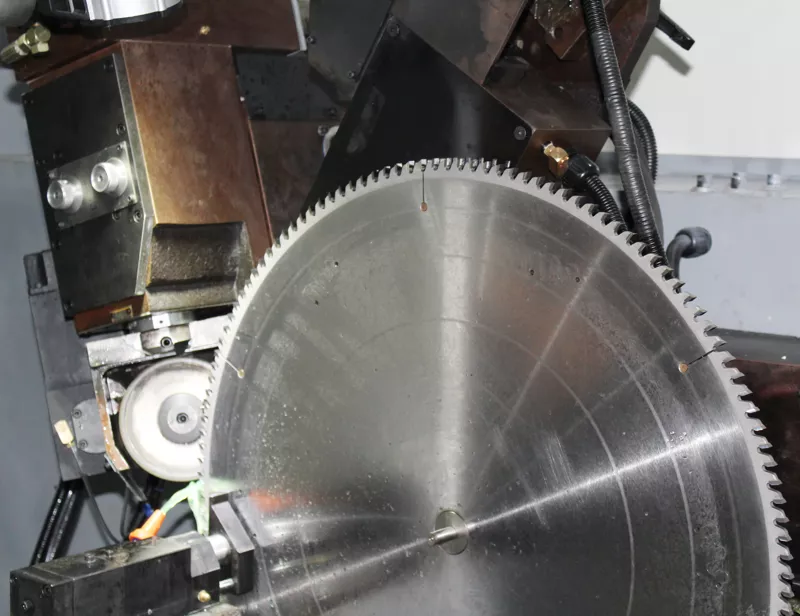

Face grinding
