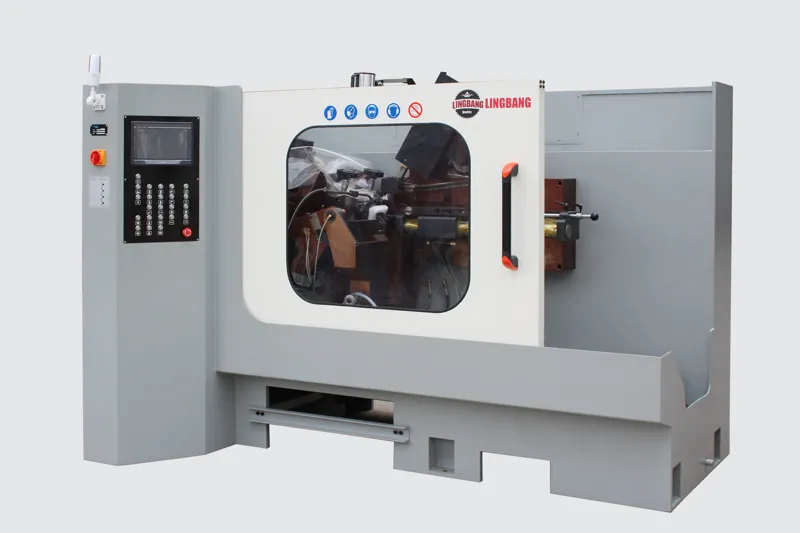

MCC1600 Double side grinding machine
Basic Attributes
- Blade Outside diameter 300-1600 mm
- Bore hole diameter 30-120 mm
- Max blade thickness 16 mm
- Tooth Pitch 7-100 mm
- Grinding speed 0.5-6 mm
- Grinding wheel outside dia. 80/100/125 mm
- Grinding wheel linear speed 25/30/38 mm
- Coolant tank capacity 200 L
- Total power 4.5 kW
- Machine Size 2350*1690*1930 mm²
- Package size 2500*1800*2050 mm²

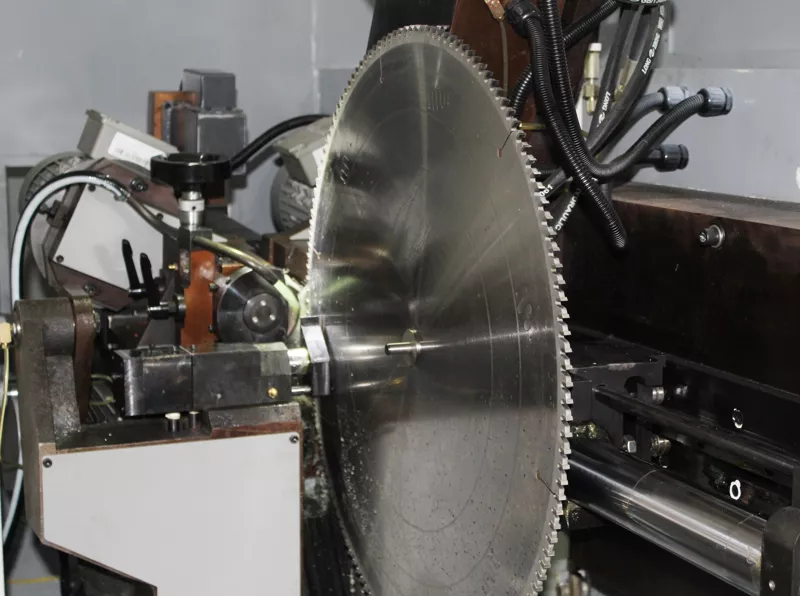

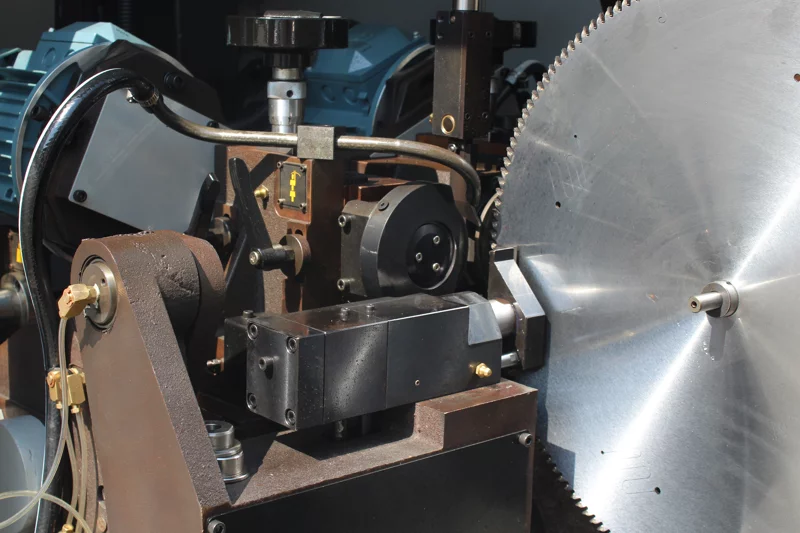

MCC1600 double side grinding machine for saw blades.
Dual side grinding applicable processing saw blades:
Aluminum alloy saw
Woodworking saw blade
Plastic PVC industry
Metal industry
Features:

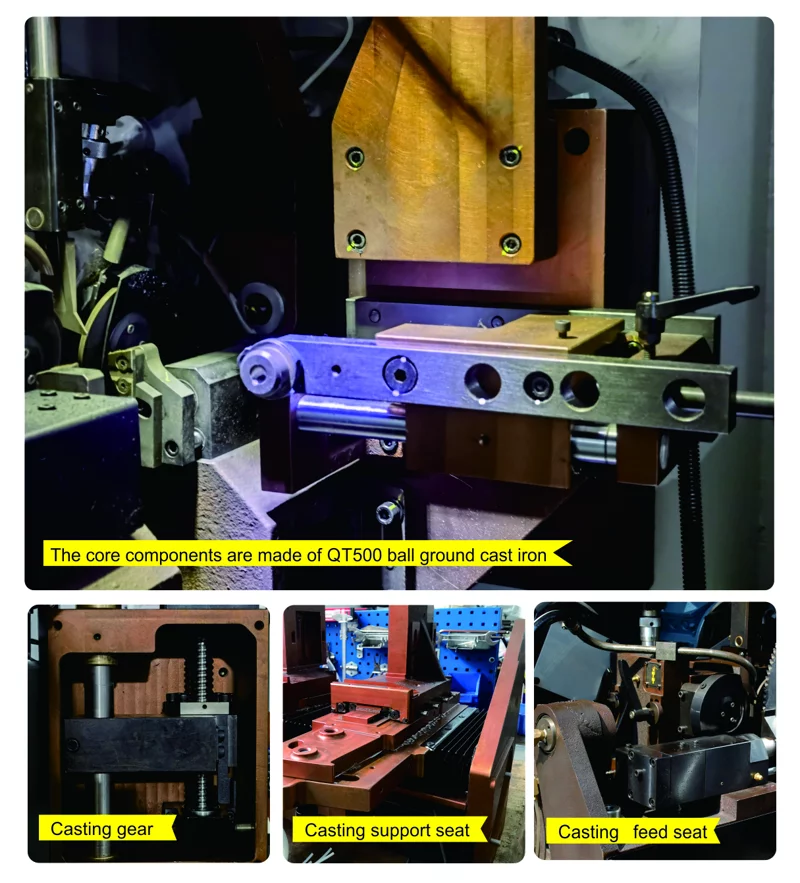

*The machine tool structure part uses ball ink cast iron
*High -precision customized imported spindle
*CNC automation control

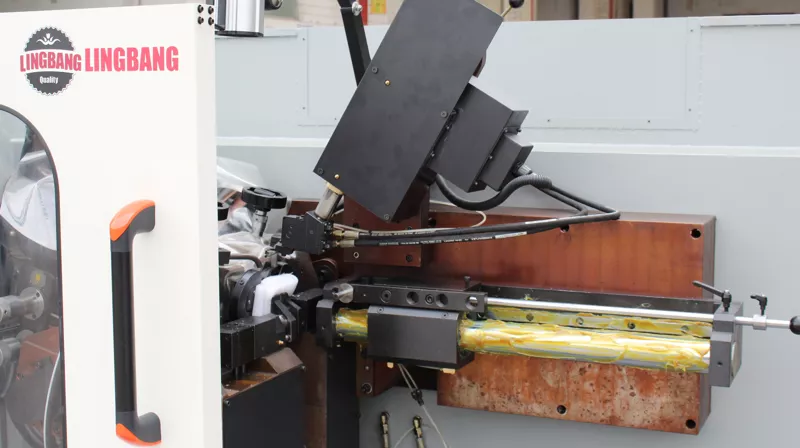

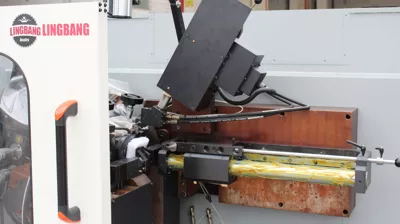

*Services to knife and feed system
Feature characteristics:
Overall protective shell, beautiful and environmental protection
The maximum processing range reaches 1600mm
All servo -to -knife and feed system

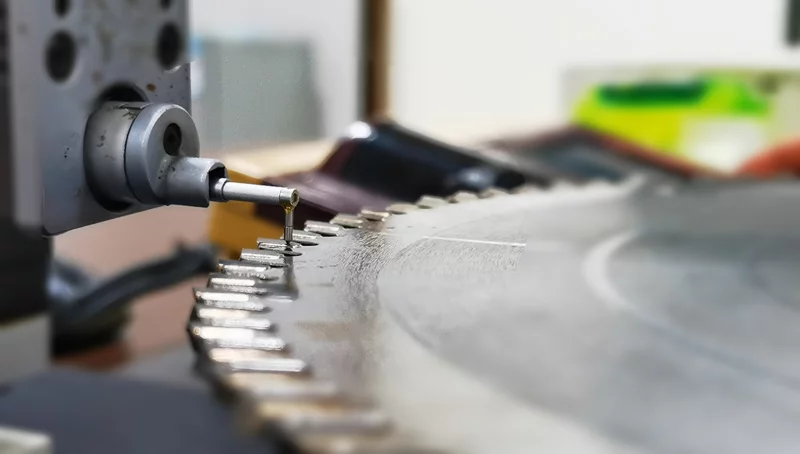

The thickness tolerance can reach ≤0.01mm, and the end surface beating ≤0.02mm (within 500mm saw blade)
The whole machine warranty 12 months
Cast iron body
For more information about alloy circular saw blade manufacturing equipment, please click
Cast iron body
Invention patents and national high-tech enterprises
National small and medium-sized science and technology enterprises, national high-tech enterprises, with 2 invention patents, a number of utility model patents, design patents, software Copyrights, etc., fully ensure the reliability and professionalism of products!
