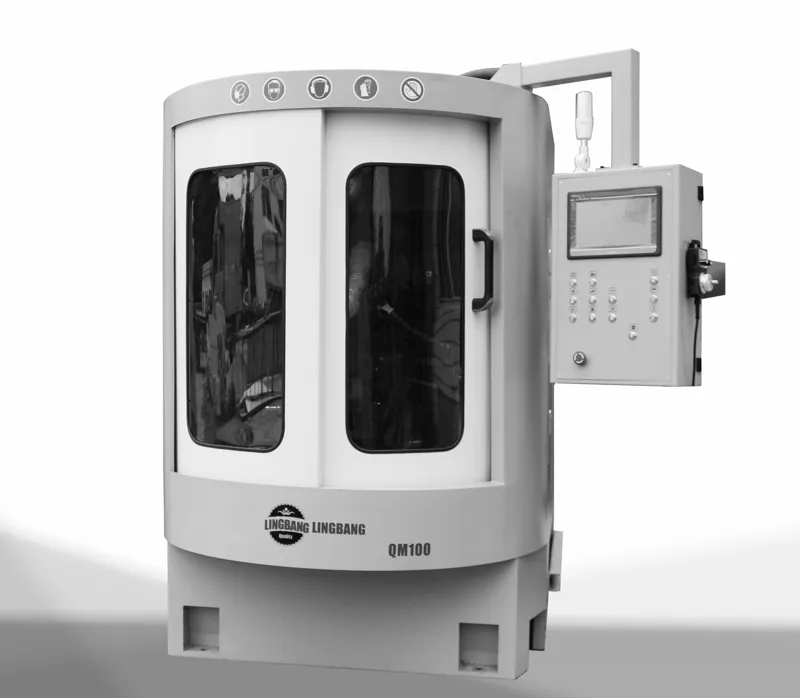

QM100 Face special grinding machine
Basic Attributes
- Blade Outside diameter 120-650 mm
- Machine Weight 1,050 kg
- Package size 1680*1790*1970 mm²
- Machine Size 1500*1630*1750 mm²
- Total power 6 kW
- Coolant tank capacity 120 L
- Grinding wheel linear speed 35 mm
- Feeding Speed 16 mm/s
- Grinding speed 0.5-6 mm/s
- Bevel grinding top&face 15 °
- Tooth Pitch 7-60 mm
- Max blade thickness 12 mm
- Grinding wheel outside dia. 150 mm

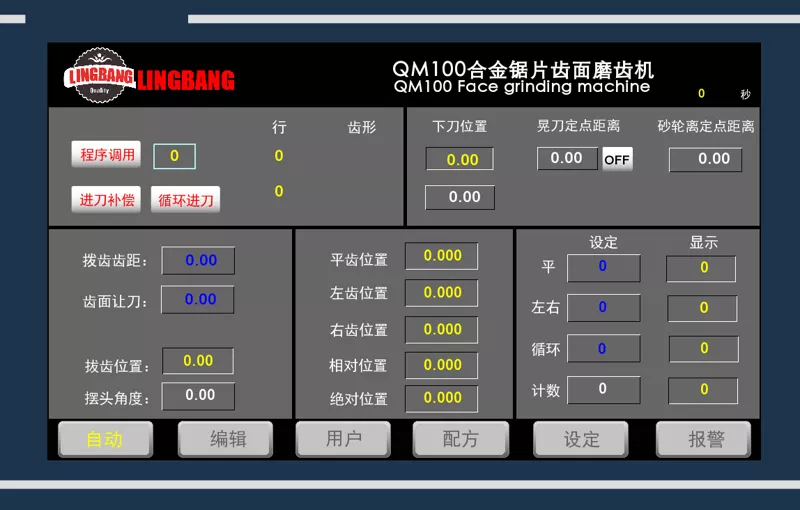

Friendly human-machine interface operating system:
This machine can be processed, left, right, left, right, left, right, left, left, left, right, left, right, flat teeth, flat teeth, etc.

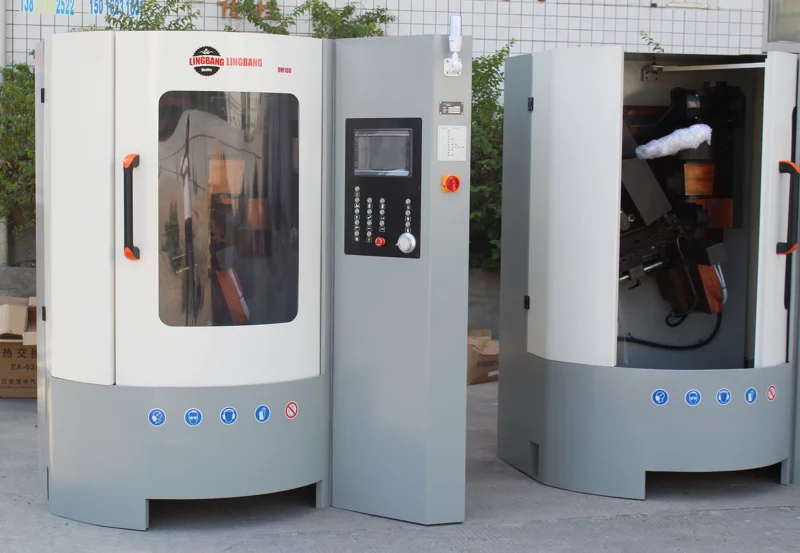

The QM100 automatic tooth grinding machine is a specialized machine model produced by Lingbang Company for grinding hard alloy saw blades.
The machine is designed with advanced technology, easy operation, and high production efficiency, making it an ideal professional equipment for saw blade production. The QM100 automatic tooth grinding machine is equipped with multiple tooth grinding shapes to choose from, using Panasonic PLC intelligent control, and the LCD touch screen can input the number of tooth grinds and the number of grinds per tooth. At the same time, it dynamically displays the grinding process.
